20.5″ H x 14″ W x 17” D

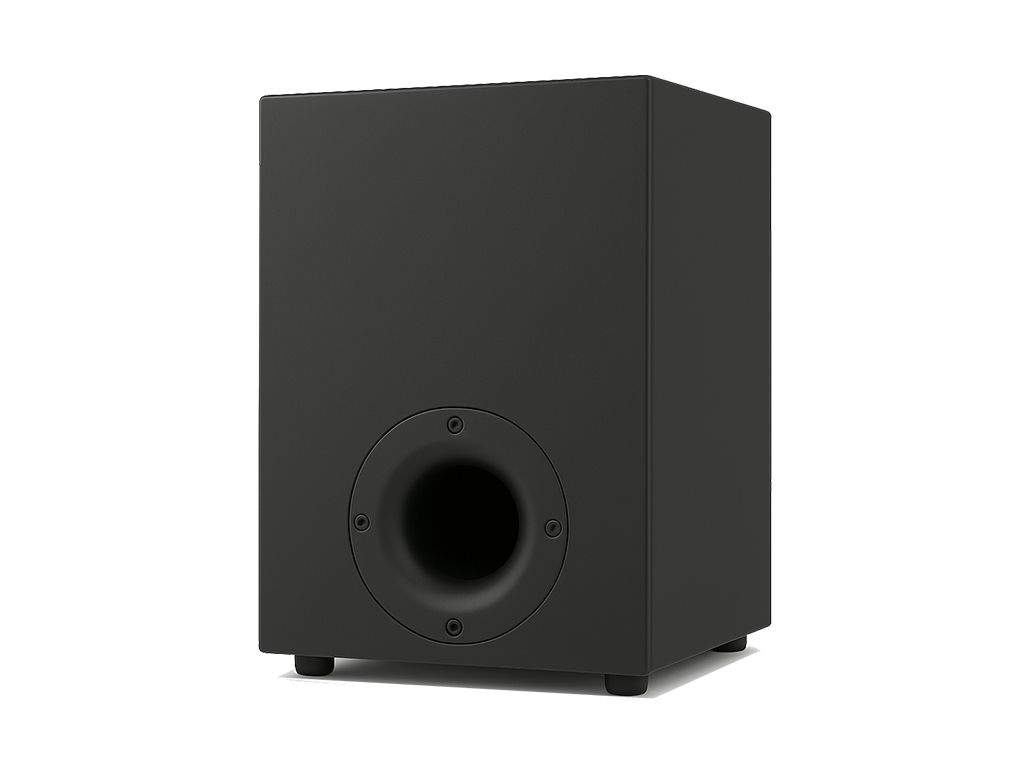

The CI-HV10 (w/ 500 watt amplifier) is a high-velocity subwoofer that offers a new level of bass enjoyment with significant advantages over industry-standard sealed and vented designs. The key to their performance is a two-chamber tuning system that affects both the front and back of the active woofer cone. The back chamber acts as a governor providing a sealed air restorative force that prevents power-robbing ultra-low frequency decoupling (subsonic “runaway”), while the front/vented portion does the actual tuning and is responsible for delivery of bass into the room. This two-part tuning mechanism provides more precise power management and constant bandwidth over conventional open-faced subwoofers (nearly 50%) while adding almost 40% greater efficiency. The thermal tolerance of the woofer’s voice coil now becomes the output limiting factor, rather than excess excursion issues, common with open-faced sealed and vented subwoofers. A single 4″ flared vent, with less than 12 grams of actual moving air mass, creates a super-fast, responsive, low-frequency shock wave that energizes the room and is more faithful to the input signal than slower conventional open-faced subwoofers. This provides a higher level of detailed bass at nearly 5X the speed. The CI-HV10/HV12 is simply faster, tighter, and more faithful to the input signal.
For additional information and pictures click here
