Description
Perfect soundbar for the Samsung Frame TV
Whether you like Caravaggio or Cronkite, J.M.W. Turner or Tina Turner, Netflix or Vudu, Tidal or Amazon Music, Samsung has the perfect TV for you and Next Level Acoustics has the perfect framed soundbar for it!
The Fusion Frame was created by the master engineers at Next Level Acoustics with one goal in mind- to provide a high-end framed audio solution for the 2019/2020 editions of Samsung’s revolutionary Frame TV series of displays.
Small form factor doesn’t mean small sound
When the Frame TV is on, it offers 4,000 pixels per square inch (in a package that is only 1.70” deep!) to deliver 4K images that rival real life. When it is off, the Frame TV turns into a home museum that displays top-quality images of some of the world’s greatest still-image artists.
Also exhibiting a diminutive 1.75″ of depth, this Frame TV soundbar solution not only provides exceptional sound quality and room-filling dynamics, but perfectly complements the look and feel of what has made the Samsung Frame TV series so popular.
In addition to matching the high-quality picture of the Frame TV with the top-of-the-line sound of the Fusion Frame soundbar, the Fusion Frame soundbar can also match any décor with a wide variety of available finishes that includes Black, White, Beige, and Walnut, as well as custom paint match and grille cloth options.
Don’t forget to add the Bass!
If you want even more sound, simply add Next Level Acoustics’ CI-IW10RS in-wall subwoofer to achieve even deeper bass response.
Revolutionary engineering meets design
Just as the Samsung Frame series has revolutionized the capabilities and capacities of art meets entertainment, NextLevel Acoustics’ Fusion Frame soundbar has taken audio to new heights in an aesthetically matching form factor.
So, whether you want to politely blow your friends away with your art collection or with the life-like images that are only capable with the Samsung Frame TV, be sure to pair it with exceptional audio produced only by the best soundbar for the Samsung Frame TV, the NextLevel Acoustic’s Fusion Frame soundbar- a speaker that is truly a work of art!

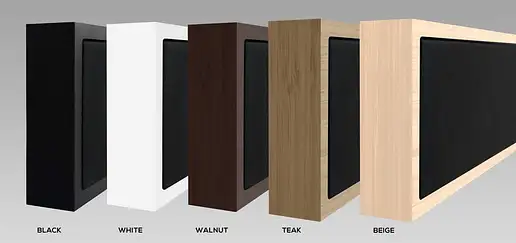

CHOOSE YOUR FINISH
Choose from Black, White, Brown/Modern Brown, Teak and Beige frame color options, as well as custom paint match. Color matches are based upon the four core frame colors and do not include any wood graining. In addition, color match shades may look different depending upon your lighting.

SPECS DESCRIPTION | SPECS |
System Design | Stereo soundbar |
Enclosure | Framed Sealed |
Woofer | (2) 4.5″ Proprietary |
Tweeter | (2) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 80 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 87 |
Mount | Pass-through flush mount |
Dimensions | 38.3” L x 6”H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | Stereo soundbar |
Enclosure | Framed Sealed |
Woofer | (2) 4.5″ Proprietary |
Tweeter | (2) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 75 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 87.5 |
Mount | Pass-through flush wall |
Dimensions | 43.5” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | Stereo soundbar |
Enclosure | Framed Sealed |
Woofer | (2) 4.5″ Proprietary |
Tweeter | (2) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 75 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 87.5 |
Mount | Pass-through flush wall |
Dimensions | 44.3” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | Stereo soundbar |
Enclosure | Framed Sealed |
Woofer | (2) 4.5″ Proprietary |
Tweeter | (2) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 72 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 87.5 |
Mount | Pass-through flush wall |
Dimensions | 48.875” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | LCR soundbar |
Enclosure | Framed Sealed |
Woofer | (3) 4.5″ Proprietary |
Tweeter | (3) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 80 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 87 |
Mount | Pass-through flush wall |
Dimensions | 48.875” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | Stereo soundbar |
Enclosure | Framed Sealed |
Woofer | (2) 4.5″ Proprietary |
Tweeter | (2) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 74 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 88.5 |
Mount | Pass-through flush wall |
Dimensions | 57.4” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | LCR soundbar |
Enclosure | Framed Sealed |
Woofer | (3) 4.5″ Proprietary |
Tweeter | (3) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 77 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 87.5 |
Mount | Pass-through flush wall |
Dimensions | 57.4” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | Stereo soundbar |
Enclosure | Framed Sealed |
Woofer | (2) 4.5″ Proprietary |
Tweeter | (2) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 74 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 89 |
Mount | Pass-through flush wall |
Dimensions | 66.3” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | LCR soundbar |
Enclosure | Framed Sealed |
Woofer | (3) 4.5″ Proprietary |
Tweeter | (3) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 67 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 88 |
Mount | Pass-through flush wall |
Dimensions | 66.3” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | Stereo soundbar |
Enclosure | Framed Sealed |
Woofer | (2) 4.5″ Proprietary |
Tweeter | (2) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 74 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 89 |
Mount | Pass-through flush wall |
Dimensions | 75.2” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
SPECS DESCRIPTION | SPECS |
System Design | LCR soundbar |
Enclosure | Framed Sealed |
Woofer | (3) 4.5″ Proprietary |
Tweeter | (3) 1″ Vifa |
Recommended Amp Power | 30-150 W |
Frequency Response | 67 Hz – 20 kHz |
Crossover | Proprietary |
Impedance | 4 ohms |
Sensitivity (db 1 watt/1 meter) | 88 |
Mount | Pass-through flush wall |
Dimensions | 75.2” L x 6” H x 1.75″ D |
Standard Finish | Matte Black Frame w/ Black Grille |
1. Please keep your boxes and inner packaging materials. In the event that your speakers need to be serviced at the factory it is essential they are returned in their original packaging.
2. Break-in normally takes about 12 hours of playing. In this 12 hours, the crossover capacitors and drive units are breaking in. Please do not play at excessive power levels. Over-driving the speaker system can result in permanent damage. Always turn down the volume when changing between program sources.
