Description
FEATURES

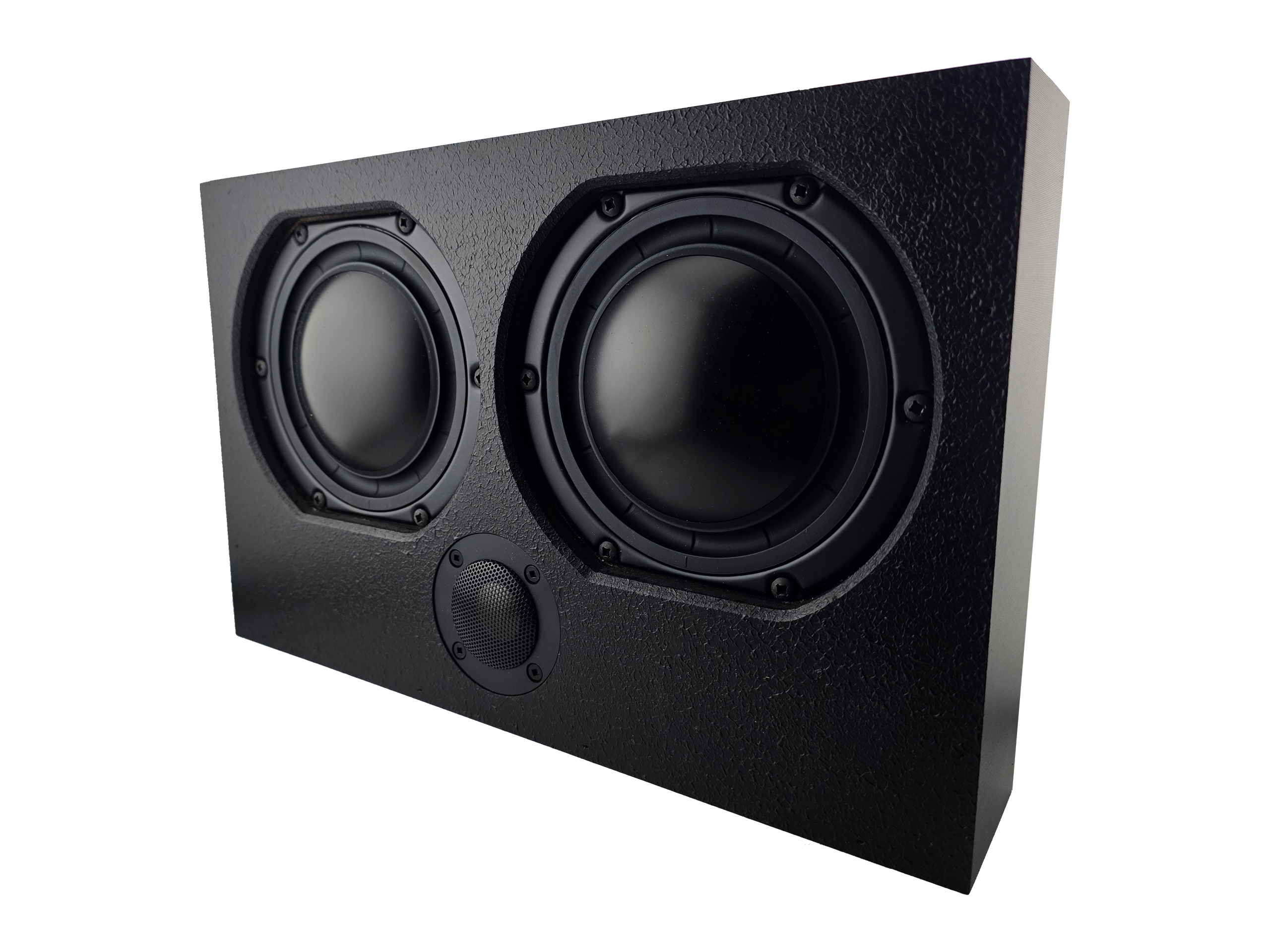

- Premium grade height channel on-ceiling speaker system
- Dual 5.25″ High-Performance Drivers
- Neodymium Tweeter
- 93 db sensitivity
- Low-Profile for ceiling-mount applications
| SPECS DESCRIPTION | SPECS |
| System Design | TWO-WAY |
| Enclosure | Sealed |
| Woofer | (2) 5.25” High-Performance drivers |
| Tweeter | (1) Neodymium |
| Recommended Amp Power | 40-200 W |
| Frequency Response | 80 Hz – 20 kHz |
| Max SPL | 104 dB @1m |
| Impedance | 8 ohms |
| Sensitivity (db 1 watt/1 meter) | 93 |
| Weight | 8 lbs |
| Overall Size | 14″ w x 9″ h x 3″ d |
| Standard Finish | Matte Black |
Suggested hardware:
- Speaker – 1.5″ NPT 4″ x 4″ mounting plate (e.g., Chief CMA105 or Crimson-AV CA4)
- Ceiling – Strong Cathedral Ceiling Adapter for ceiling mounts with 1.5″ NPS threading or the Chief CMA395
- Between mounts – 1.5″ NPT extension pole
Suggesting Installation:
- Determine the required speaker toe-in and affix the ceiling mount to the ceiling at that angle
- Affix your speaker mounting plate to the back of the speaker using the provided threaded inserts and hardware
- Couple the ceiling mounting plate to the speaker mounting plate using your extension pole
- Adjust the angle of the speaker to the desired angle and secure in-place
