Description
FEATURES
Features include:
- High-gloss piano black / Matte Black / Red Oak / Walnut / Natural Cherry
- Interior main reflector panel re-focusses top-firing speakers out the front-facing grille ensuring continued Atmos performance
- Main reflector panel precisely engineered grooves direct the top firing speaker soundwaves away from the SONOS® ARC without any reflection back
- Strategically placed sound dampening materials to reduce unwanted internal reflections
- Interior side reflectors focus side firing speaker sound to the outside edges of the listening position
- A removable magnetic grille is partially inset for additional structural integrity
- Mesh weave grille material supports full IR passthrough
- Wide variety of standard and custom grille fabric options
- Cable management openings on the ends of the wall returns (HDMI, Wall Outlet, Ethernet…)
- MDF construction
| SPECS DESCRIPTION | SPECS |
| SYSTEM DESIGN | Custom Mantel w/ wall return |
| Product | For use with the SONOS Arc |
| Engineering | Customized wave guide and side reflector panels |
| Acoustics | Specialized sound dampening materials |
| DIMENSIONS | custom long x 7″ h x 4.7″ d (main unit) + 3″ – 5″ d (return to the wall) |
| WEIGHT | Varies by size |
| STANDARD FINISH | High Gloss Black, Matte Black |
- Remove the front grille
- Determine the desired location of your Mantelbar
- Using the pass-through holes inside the Mantelbar, level and secure to the facade of the fireplace using the correct hardware (e.g., toggle bolts, concrete anchors..)

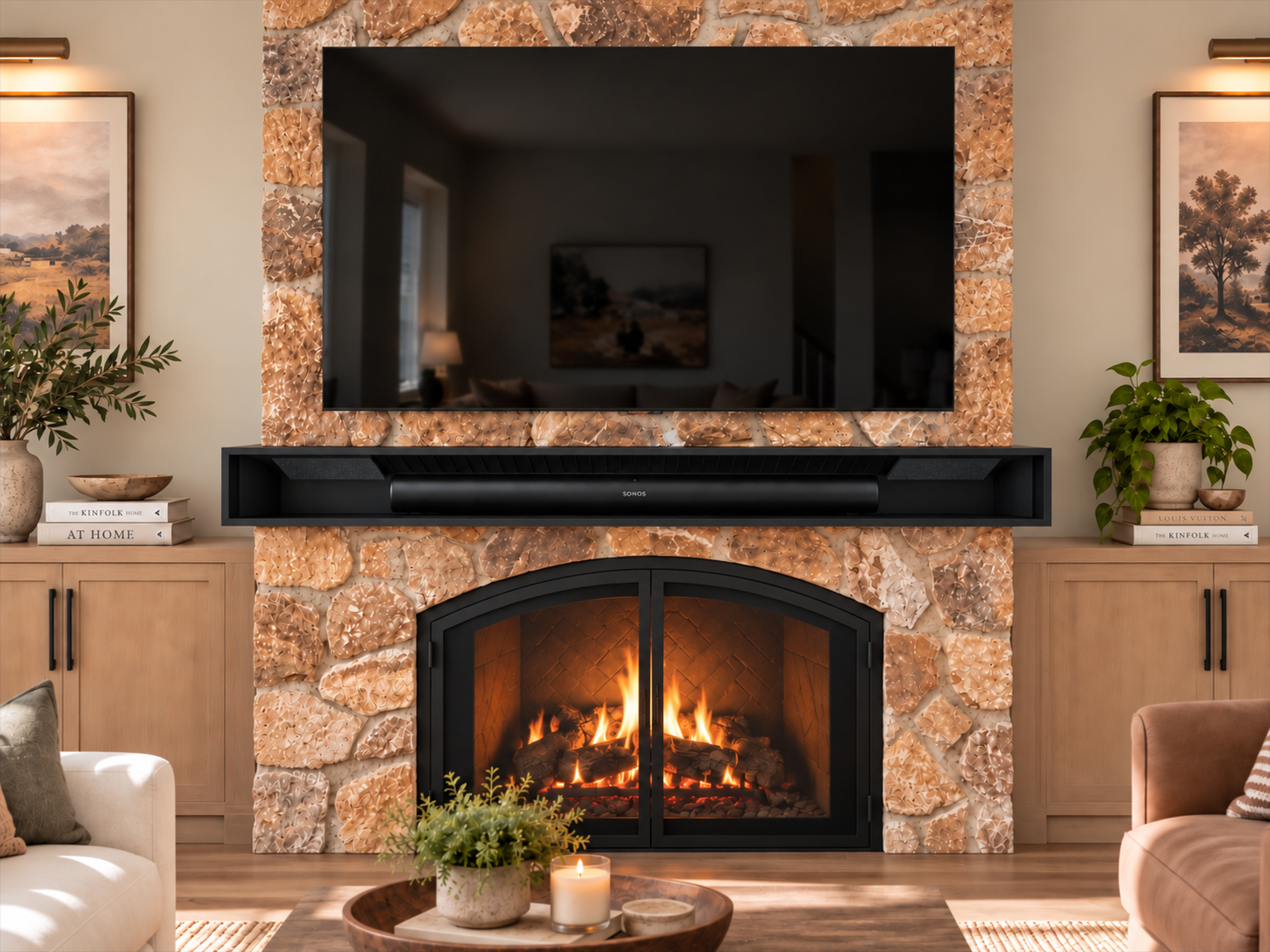

- Place the Sonos Arc in the center of the Mantelbar, directly below the waveguide
- Using the cable management channels located on the backside of the returns, run your cables to the inside of the cabinet and connect to the Sonos Arc
- Please ensure that you adhere to all local electrical codes if mounting an electrical outlet behind the returns.
- Replace the grille
Installer acknowledges that the Mantelbar and/or soundbar installed within it may be used near a fireplace or other heat source and do not include special heat-resistant materials or thermal protection. Heat exposure may damage the Mantelbar, the soundbar, or both, and such damage is not covered by warranty. Installer is solely responsible for proper clearances, ventilation, heat management, and compliance with all applicable codes and fireplace manufacturer requirements. Installer assumes all risk associated with installation near a heat source, and Manufacturer shall not be liable for any resulting damage, malfunction, safety issue, or loss.
