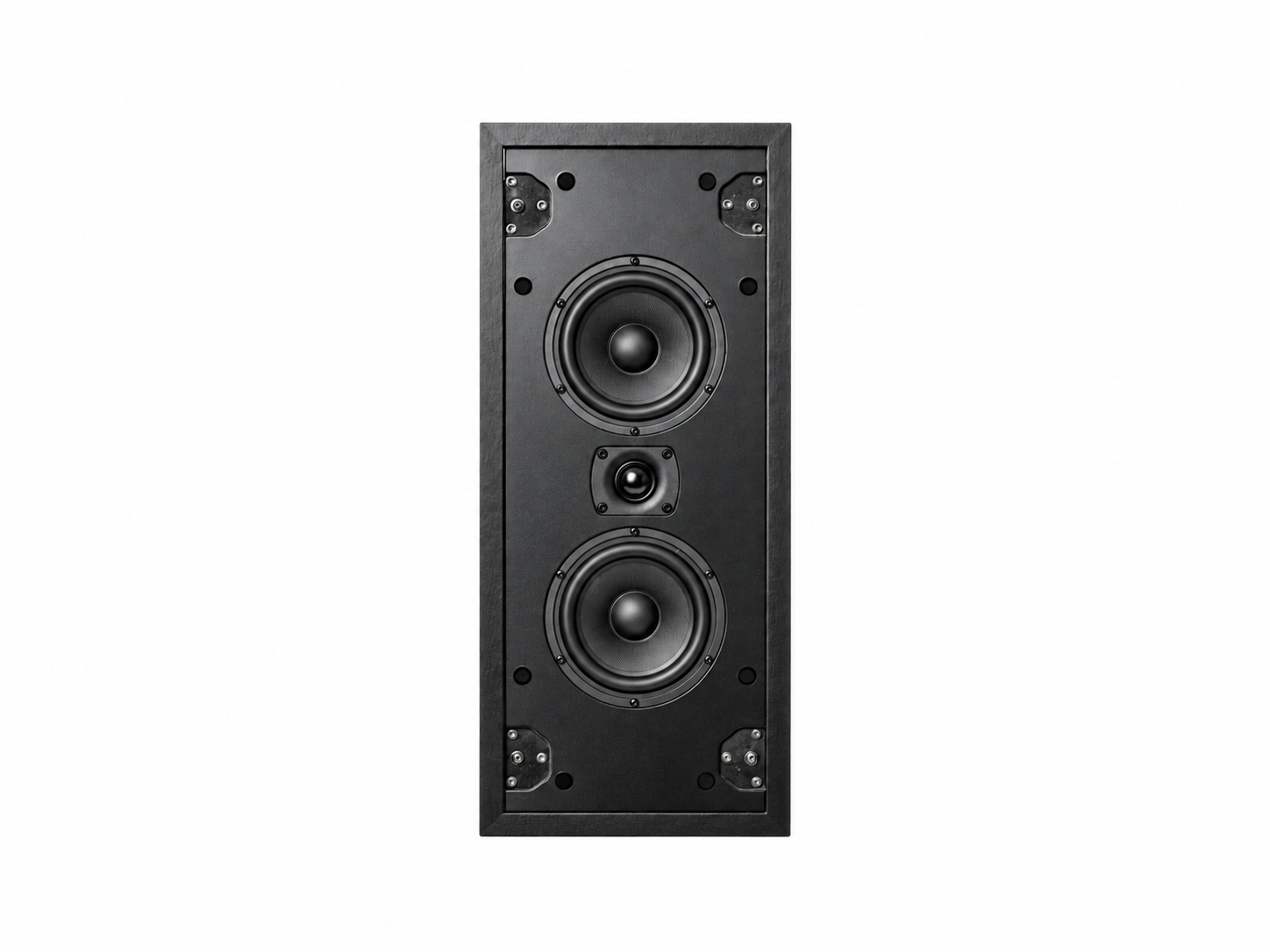

CI-IW55 / IW55-DYN
The CI-IW55 and CI-IW55-S (Signature) are premium grade in-wall speaker systems designed to optimize multi-channel installations. Proprietary “D” series carbon fiber/paper and wool woofers, and a 1” neodymium silk dome tweeter, provide outstanding performance with superior dynamics and power bandwidth. The Signature Series version is our tweeter upgrade for this model and uses the same tweeter featured in our Fusion Reference Soundbar.
Choose from a wide variety of standard and custom grille fabrics, as well as configurations (e.g., in-wall, on-wall).
- Premium grade in-wall speaker system
- This speaker may also be configured as an on-wall, bookshelf, or tower (ask for details)
- Dual 5.5″ Carbon Wool Drivers
- Vifa and High-Performance Tweeters
- Fully enclosed MDF back box to ensure that whatever is in your wall has zero effect on its performance
- Rail mounting system
- Supports 2×4 construction
- Choose from a wide variety of standard and custom grille fabrics, as well as configurations (e.g., in-wall, on-wall, tower).
| SPECS DESCRIPTION | SPECS |
| System Design | TWO-WAY Dual 5.5” audiophile grade in-wall system |
| Enclosure | Sealed |
| Woofer | (2) 5.5” Wool/Carbon Quite Cone™, Long Throw 1.25″ vc |
| Tweeter | (1) Vifa 1″ textile neodymium silk dome tweeter |
| Recommended Amp Power | 40-400 W |
| Frequency Response | 60 Hz – 20 kHz |
| Anechoic Frequency Response | 60 Hz – 18 kHz +- 2 dB |
| Impedance | 4 ohms |
| Sensitivity (db 1 watt/1 meter) | 90 |
| Hole Cut Out | 8.25″ x 14.75″ x 4″d |
| Overall Size | 8 15/16″ x 15.5″ |
| Standard Finish | Black Pro Duratex |
| SPECS DESCRIPTION | SPECS |
| System Design | TWO-WAY Dual 5.5” audiophile grade in-wall system |
| Enclosure | Sealed |
| Woofer | (2) 5.5” Wool/Carbon Quite Cone™, Long Throw 1.25″ vc |
| Tweeter | (1) High-Performance silk dome tweeter |
| Recommended Amp Power | 40-400 W |
| Frequency Response | 60 Hz – 20 kHz |
| Anechoic Frequency Response | 60 Hz – 18 kHz +- 2 dB |
| Impedance | 4 ohms |
| Sensitivity (db 1 watt/1 meter) | 90 |
| Hole Cut Out | 9.25″ x 19.5″ |
| Overall Size | 10.25″ x 20.5″ |
| Standard Finish | Satin Black |
Next Level preconstruction brackets come with (2) grooves cut into the outside edge of the front face with mounting hardware and perforated metal securing plates. Please follow the below steps:
- Lay the preconstruction bracket on its back with the grooves facing upward
- Using the small silver #6 screws (supplied), install a single perforated metal plate into each of the (2) grooves using the 2 screws
- Move the assembly with the plates attached to the desired location on the wall and secure to the studs (front facing outward) using the 1” wood screws (provided)
- Drywall over the assembly and router out the inner section of drywall to where the preconstruction bracket starts exposing the opening for the speaker
