Audio Art

The Audio Art blurs the lines between Art and Sound creating a design forward audio solution for both Residential and Commercial applications. Created by the Master Engineers at NextLevel Acoustics, quad sound modules outfitted with four 2.5″ long throw drivers provides the impressive soundstage, while designer 45-degree grilles paired with a custom frame creates the “Gallery” experience.

This product may be purchased as an LCR (Left, Dual Center, and Right sound modules), LCR with dual Height channels, or as a Stereo configuration supporting up to 100″+ displays. Choose from over 15 designer grille fabrics and 100’s of Benjamin Moore colors (frame kit) to complete your work of Audio Art.

*The Audio Art may be used with the Samsung Frame TV w/ special IR badge modification, or with any display that exhibits no protrusions below the tv (e.g., IR badge/sensor) that would prevent the sound modules from mounting extremely close (e.g., 1/8″) to the display.

FEATURES

Quad Module Art Sound System

Gallery Style Design

Standard and Custom depth sound modules and frame kits

2.5″ Long Throw Quad Drivers and 1″ Soft Dome Tweeters

Choice of LCR w/ dual center, LCR w/ dual Height channels or Stereo configurations

LCR (Quad Sound Modules) / Stereo (Dual L-R Sound Modules / Dual Grille Only Modules (Top and Bottom)

Max SPL 98 dB @ 2M

Choose from over 15 designer grille options

Choose from 100’s of Benjamin Moore custom colors (Frame Kit)

CHOOSE YOUR SOUND FORMAT

LCR (LEFT, DUAL CENTER, RIGHT)

Four sound modules (LCR – Left, Dual Center, Right) wrap around the display creating a dynamic and immersive audio presentation. Sound modules feature quad 2.5″ drivers w/ 1″ tweeter.

LCR + HEIGHT CHANNELS

Four sound modules (LCR + Heights) wrap around the display creating a dynamic and immersive spatial audio presentation. In order to maximize channel separation, the left and right channel drivers have been purposely moved downwards optimizing spatial audio performance. The LCR features quad 2.5″ drivers w/ 1″ tweeters, while the height channels feature dual 2.5″ drivers w/ 1″ tweeters.

STEREO (LEFT + RIGHT)

Two sound modules (Stereo – Left and Right) w/ two grille only modules wrap around the display creating a dynamic and immersive Stereo presentation. Sound modules feature quad 2.5″ drivers w/ 1″ tweeter.

CHOOSE YOUR DESIGNER GRILLES

Custom 45-degree designer grilles wrap around the sound modules, creating the illusion of a picture mat. Choose from over 15 designer grille fabrics to complement your room aesthetics.



CHOOSE YOUR FRAME KIT

The Audio Art is finished with a 1″ wide x 3″ deep (standard) or 1″ wide x custom depth frame kit to fit >3″d (depth+mount) displays.  Choose from 100’s of Benjamin Moore custom colors or ask about our wood veneer and stain options.

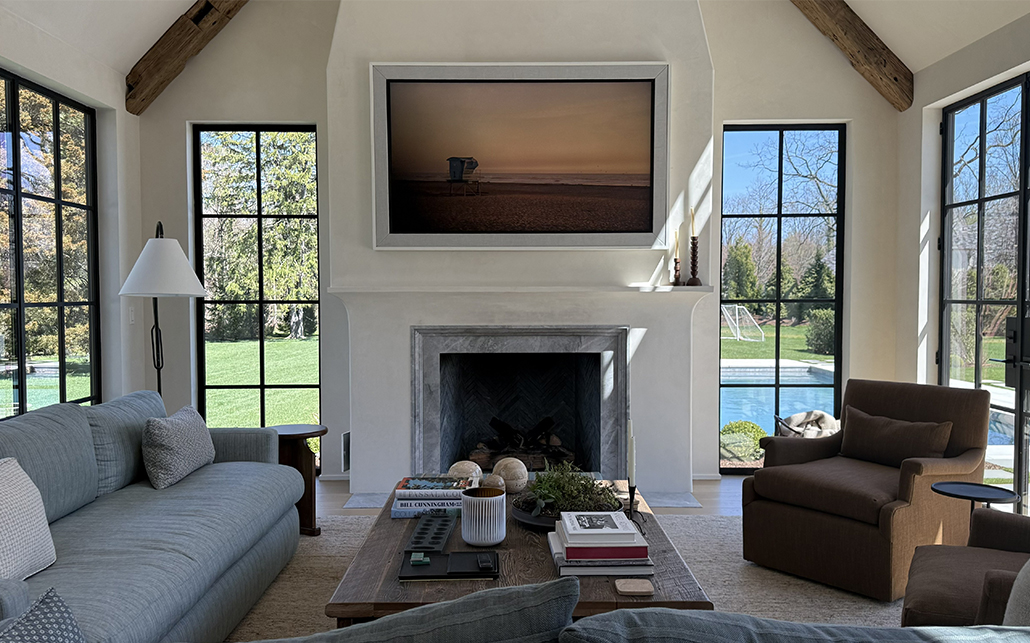

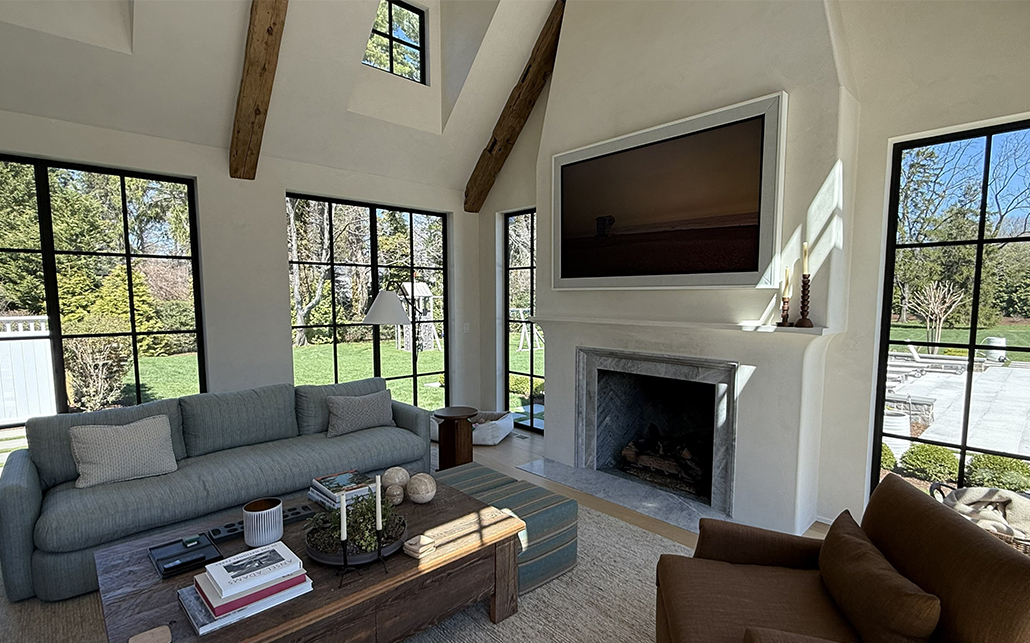

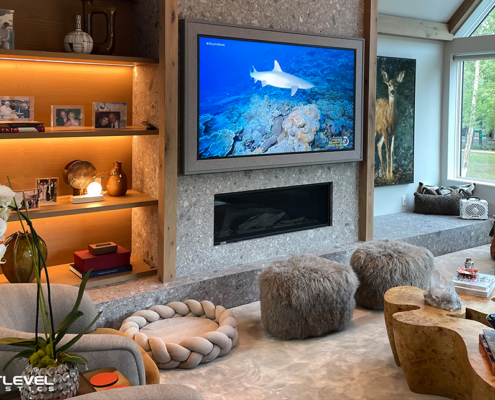

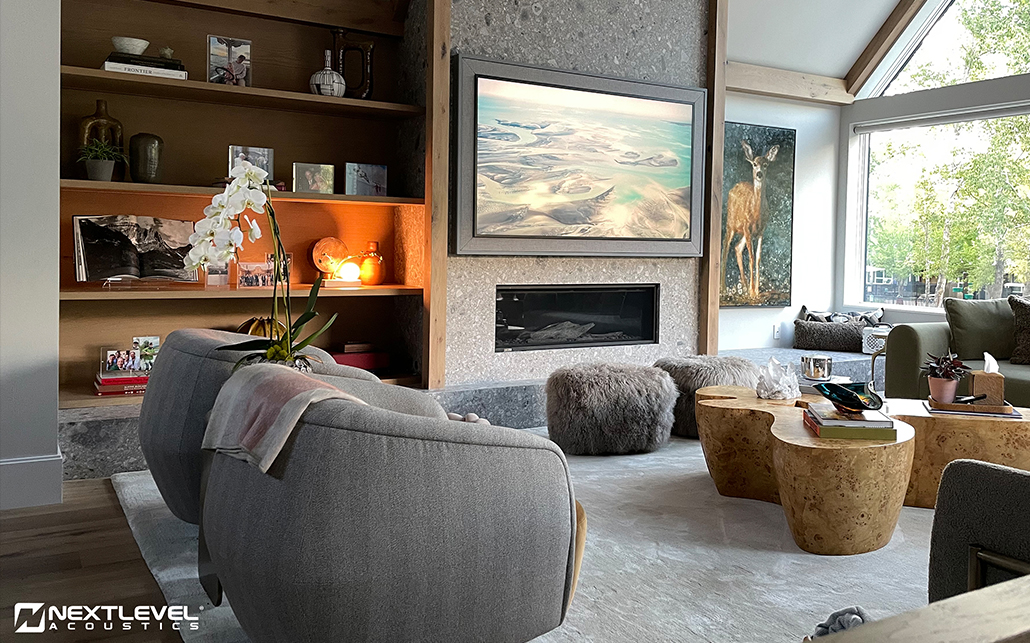

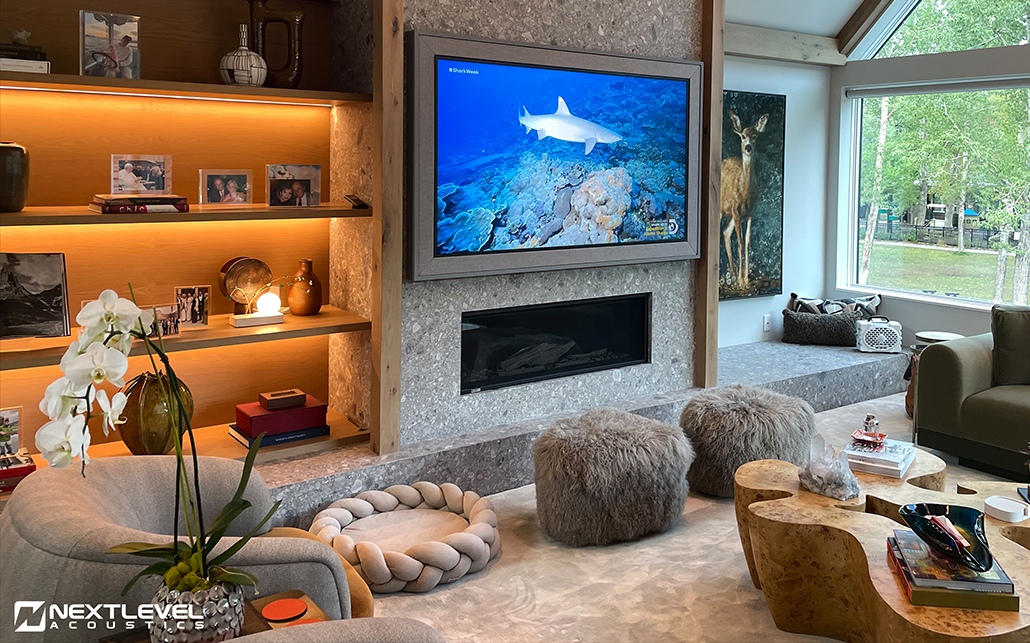

AUDIO ART INSTALLATON

Installed by Connect – Birmingham, Alabama

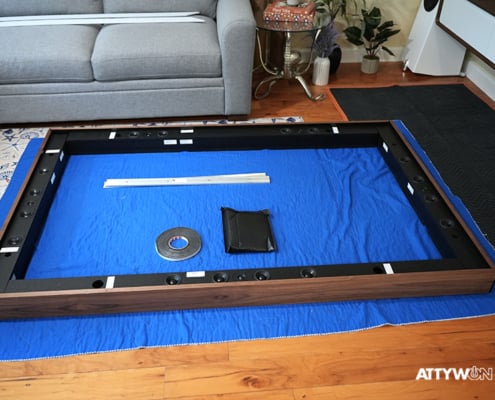

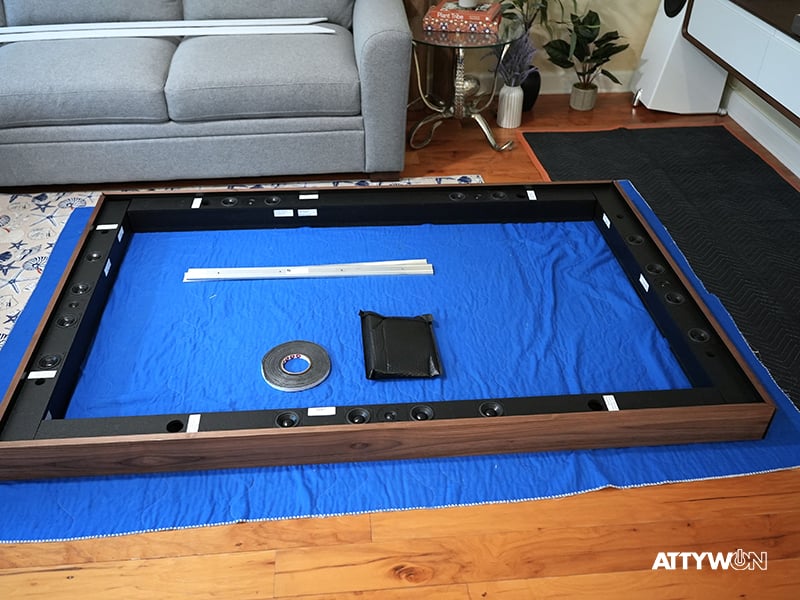

SOUND MODULES

Custom designed sound modules flank the display creating an immersive and dynamic sound field. Designer 45-degree grilles magnetically attach to the sound modules creating a “picture-mat” effect.

FRAME KIT

Our custom frame kit, in your choice of color easily attach to the outside of the sound modules using our propriety magnetic mounting system.

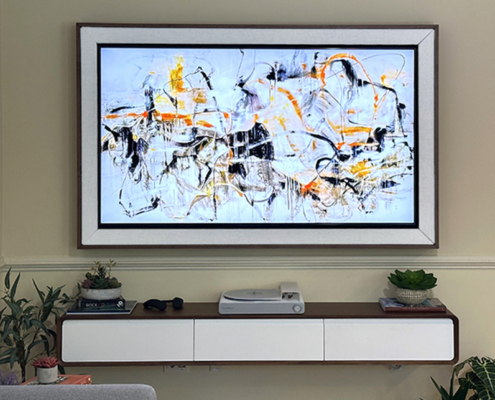

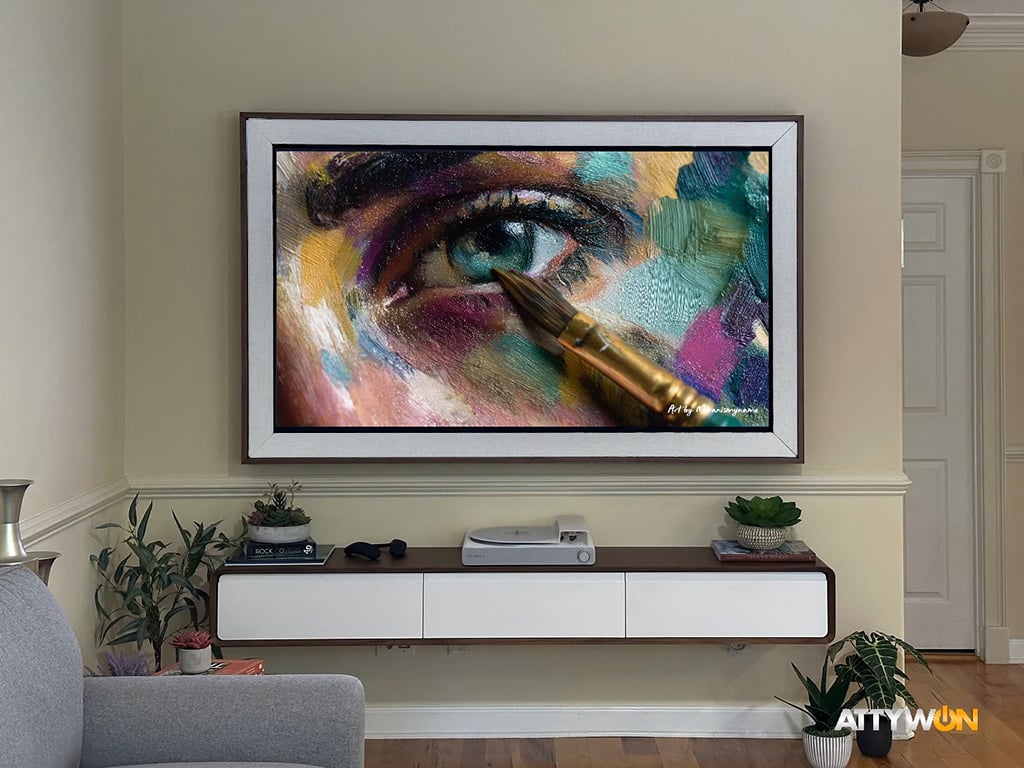

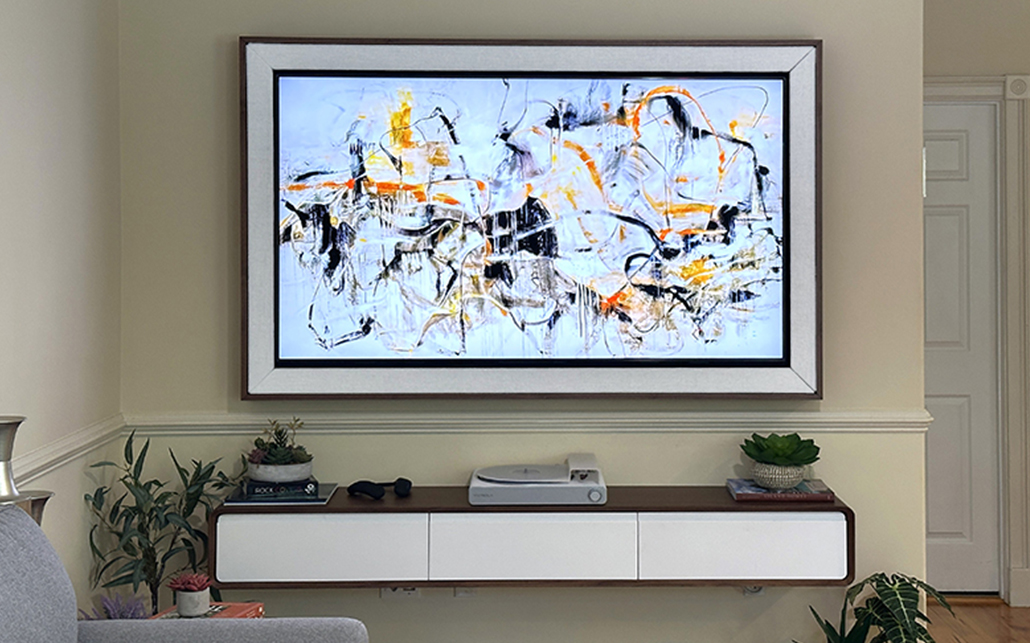

FINAL PRODUCT

Get ready to treat your senses to pure audio bliss in the form of an artistic masterpiece. Want to take your Audio Art to the “Next Level”? Ask about our custom driver modifications and in-wall subwoofer pairings.

SPECS DESCRIPTION SPECS
System Design Art Series LCR w/ Dual Center

WWTWW per LCR modules
Enclosure Ported
Woofer 2.5″ Long Throw
Tweeter 1″ Soft Dome
Recommended Amp Power 35-300 W
Frequency Response 75-80 Hz – 20 kHz (sides) / 75-80Hz – 20 kHz (dual center)

**Varies based upon display size
Impedance Left and Right 6 ohms
Impedance Dual Center 8 ohms
Sensitivity (db 1 watt/1 meter) 89 dB
Max SPL @ 2M 98 dB
Dimensions  2.95″ w x 2.95″ d x custom long modules or 2.95″ w x custom long x custom d to fit >3″d (depth+mount) displays

1″ w x 3″ d  Standard Frame Kit or 1″ w x custom d  Frame Kit to fit >3″d (depth+mount) displays.)

**Total dimensions will vary based upon the display chosen
Standard Finish Choice of custom grille fabrics and Benjamin Moore paint match (included)
